Home /Project Master
Project MasterHelp Portal
Project & Estimate
"Project & Estimate" for road estimation is a comprehensive document that provides both an overview of the road construction or improvement project and a detailed Cost Estimation.
It includes:
- Project Overview: A summary of the road project, this section details the road's location (District, Block & Gram Panchayat), project source of fund, length of the road, road specification, and any relevant environmental or regulatory considerations.
- Estimate Details: A detailed cost estimate that breaks down anticipated expenses for the project. This includes:
- Material Costs, Labour Costs, Overhead Costs & Additional Costs.
- District wise and geographic area wise (Hill area, Riverine) cost is changeable.
This document provides a clear understanding of both the project’s scope and the financial requirements, helping cost estimation stakeholders make informed decisions and manage the project effectively.
Project Master
The "Project Master" for road cost estimation in West Bengal provides a detailed overview of the road construction or improvement project specific to the region. It includes Objectives, Scope, Timeline, Cost Estimate & other information.
This document offers a comprehensive guide for managing and executing the road cost estimation project in the region.

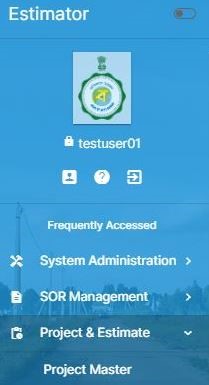

How will go to the Project Master screen.
Project & Estimation Project Master

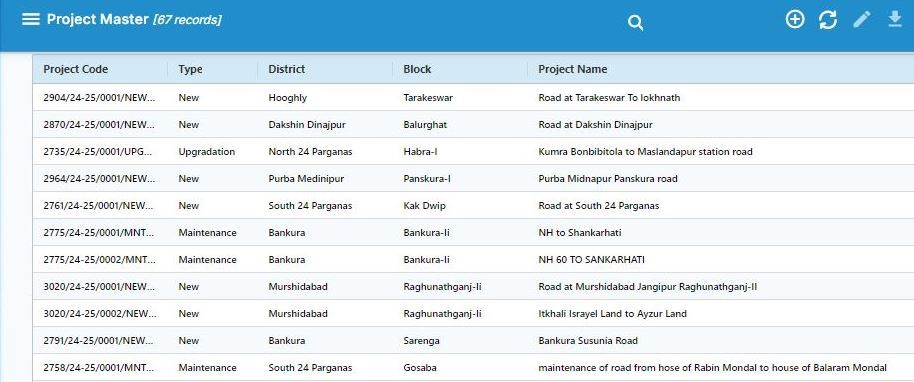

Project Master screen.

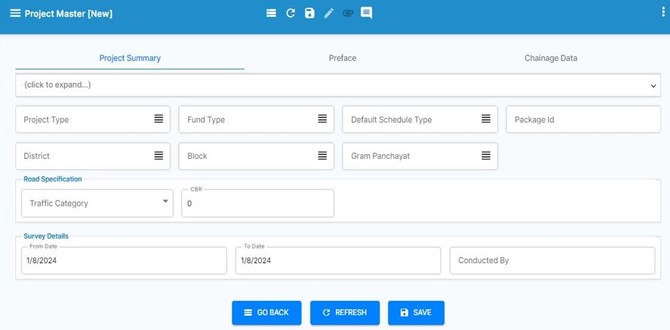

New Project Master screen.
Project Master details fields:
| Project Code | Read-only system generated number. |
| Detailed Description | Describe the project title to identify the particular project related details. |
| Project Type | What kind of project are you referring to it could be anything New, Upgradation, Maintenance |
| Fund Type | Fund source of the project it can be either PMGSY, State Budget, RIDF |
| Default Schedule Type | Select the default schedule to be used for estimation in project however item from other schedule also be selected. |
| District | Referring to a project within a specific district. (Predefine) |
| Block | Project is focused on a specific block within a district. (Predefine) |
| Gram Panchayat | Select the Gram Panchayat name. (Predefine) |
| Road Specification | In road design, traffic categories such as T1, T2, and T3 are often used to classify roads based on the type and volume of traffic. |
| CBR | The California Bearing Ratio (CBR) is a crucial parameter used in road construction and pavement design to assess the strength of subgrade soil or base materials. It provides a measure of the load-bearing capacity of the soil and helps in designing the appropriate pavement structure. |
| From Date | "From Date" is used to indicate the start date of a project. |
| To Date | "To Date" marks the end date of a project. |
| Conducted By | "Conducted By" typically refers to the individual, team, or organization responsible for carrying out a project, task, or event. |
Project Preface
The "Project Preface" for road estimation provides an introductory overview of the road construction or improvement project. It includes:
- Purpose: Explains the need for the road project and its expected impact.
- Scope: Outlines the extent of the work, including road length, location, and key features.
- Objectives: States the primary goals, such as improving transportation efficiency or safety.
- Background: States the primary goals, such as improving transportation efficiency or safety.
This preface helps set the stage for the detailed project and cost estimation by offering a clear understanding of the project's significance and goals.

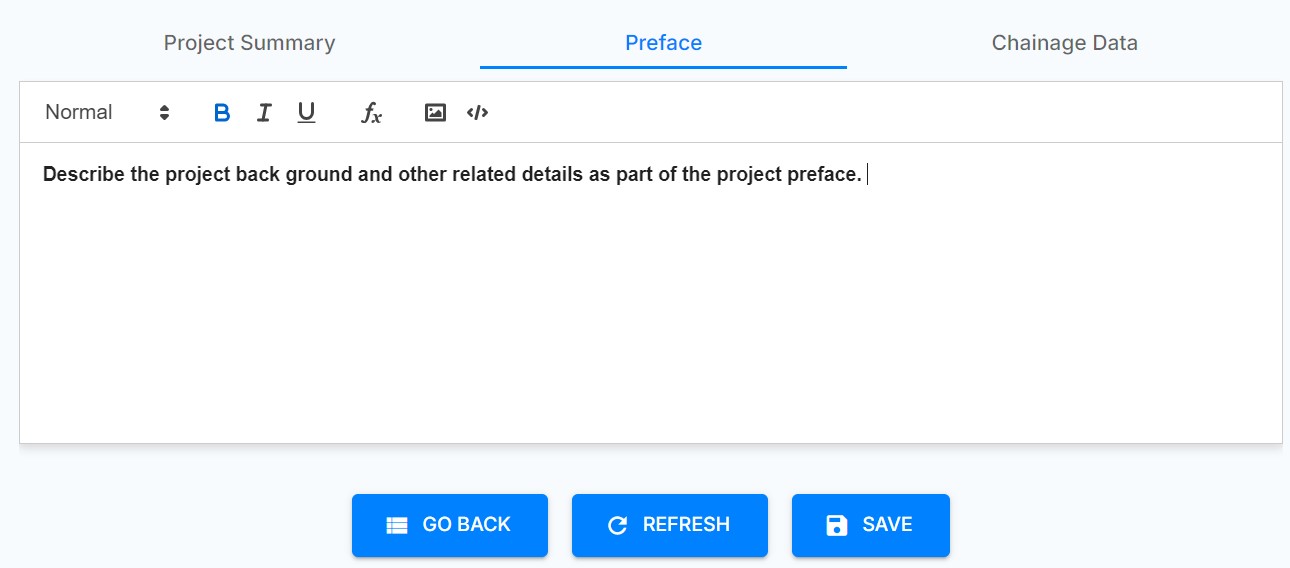

Project Preface manually type or copy paste from word or excel.
